Zooz Z-Wave Long Range 700 Series Titan Water Valve Actuator ZAC36 LR

Smarter Flood Prevention

PRODUCT HIGHLIGHTS

• Automatic shut-off: connect the Titan valve actuator to your Z-Wave hub to close your water valve automatically anytime a leak is detected on any of the connecter water sensors

• 0.5" - 1.25" ball valves only: please check your water valve for compatibility first
• Check your valve first: you'll need 3" clearance to each side from the center of the valve, 1" clearance between the pipe and the wall, and at least 1.25" clearance between the valve handle and the pipe.
  • Hex Nut: for the standard fork, the nut must be under 19mm (measure the hex nut across its widest point, from corner to corner).
    • Larger fork (sold separately) can accomodate a hex nut up to 22mm.
• Works offline: a wired leak sensor probe is included to shut your water off even if the hub is offline or if you don't have a Z-Wave controller at all!

• Indoor / outdoor: install the actuator outdoors if this is where your water main is.

• Back-up battery (sold separately): add extra peace of mind with a smart power pack for the Titan (buy here). The Titan automatically shuts down right before the battery is fully drained, thanks to its smart auto shut-off feature.
• Tool-free DIY installation: you'll be done in less than 5 minutes! Remember to install and calibrate the valve before testing it.
• Extremely powerful: the Titan actuator auto-calibrates and tackles even the most stubborn valves
• Z-Wave Long Range ready: extend the wireless coverage up to 1 mile if your hub supports Long Range
• New 700 series Z-Wave chip: faster, more secure, and reliable wireless communication with greater range than ever
• SmartStart for easier and safer pairing

• 5-year warranty and lifetime tech support

• Check out ZAC36 Frequently Asked Questions

NOTE: Z-Wave gateway controller required - sold separately. You need a security enabled controller to take full advantage of the product.

PRODUCT CONDITION

We may have this product available in open box, refurbished, or used condition - just check the variant buttons under the product price for availability. All of our recycled inventory has been tested for both manual and Z-Wave control and is fully functional at the time of shipment. Here is what you can expect when ordering your device:

• NEW: brand new product, as delivered by the factory; standard warranty (extended warranty if purchased from The Smartest House or registered within 30 days).
• OPEN BOX: like new item in excellent condition, it may come in partially damaged or not original packaging; all accessories included; hardware and firmware version may be different than the brand new device description; standard warranty (extended warranty if purchased from The Smartest House or registered within 30 days).
• REFURBISHED: good condition, may show slight signs of wear, may not include all accessories (like product manual, etc); hardware and firmware version may be different than the brand new device description; 1-year seller warranty, lifetime tech support.
• USED (FINAL SALE): used condition, may show signs of wear, may not include accessories (like product manual, etc) or parts of the packaging; may show signs of wear like scratches; FINAL SALE: not eligible for return, replacement, or warranty service; hardware and firmware version may be different than the brand new device description. PLEASE NOTE: Wired Leak Sensor Probe is not included and cannot be connected to this version of the device.

SPECIFICATIONS

• Valve Requirements: 0.5" - 1.25" ball valves only
• Installation Requirements: 3" clearance from the valve center to each side on the pipe, at least 1.25" clearance between the valve handle and the pipe, at least 1" clearance between the pipe and the wall.
• Water Leak Probe Length: 4.75 feet
• Z-Wave Region: US / CA / MX
• Z-Wave Chip: 700 series
• Power: 12 V DC (1 A) power supply (included)
• Power Cord Length: 9.5 feet
• Temperature Sensor Range: -40° – 257° F
• Sound Indicator: up to 85 dB
• Wireless Range: Up to 400 feet line of sight (up to 130 feet indoors)
• Operating Temperature: 14° – 122° F
• Dimensions: 5.5" long x 2.25" wide x 5" tall
• Installation: Indoor or outdoor use (IP66)


RESOURCES

Zooz Titan Water Valve Actuator ZAC36 Quick Start Guide (PDF)

ZAC36 Frequently Asked Questions

Advanced Settings

Support Portal

WORKS WITH

NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product.

ACCESSORIES

Save with Value Kits!

$28 Savings: Titan Water Valve Actuator + 2 x Water Leak Sensors

$30 Savings: Titan Water Valve Actuator + 2 x Water Leak Sensors + Back-up Battery

How It Works

Whether it’s an emergency or just for general safety and convenience, the Titan Water Valve Actuator offers an easy approach to smart home solutions. When connected to your Z-Wave hub, you can wirelessly and manually control your water valve from any mobile device.

There’s even potential for advanced home automation, which means more protection. Link up this valve actuator with other Z-Wave devices, like a flood sensor, and the valve will automatically close when water is detected. Or simply attach the included wired offline detection probe for local monitoring even when the hub isn't available.

The built-in Z-Wave signal repeater extends and strengthens the range of your Z-Wave network, ensuring fast and reliable connections thank to its 700 series chip technology.

  PRO INSTALLATION NOW AVAILABLE!

Click the image above to schedule a consultation with an installer for a 100% worry-free set-up!

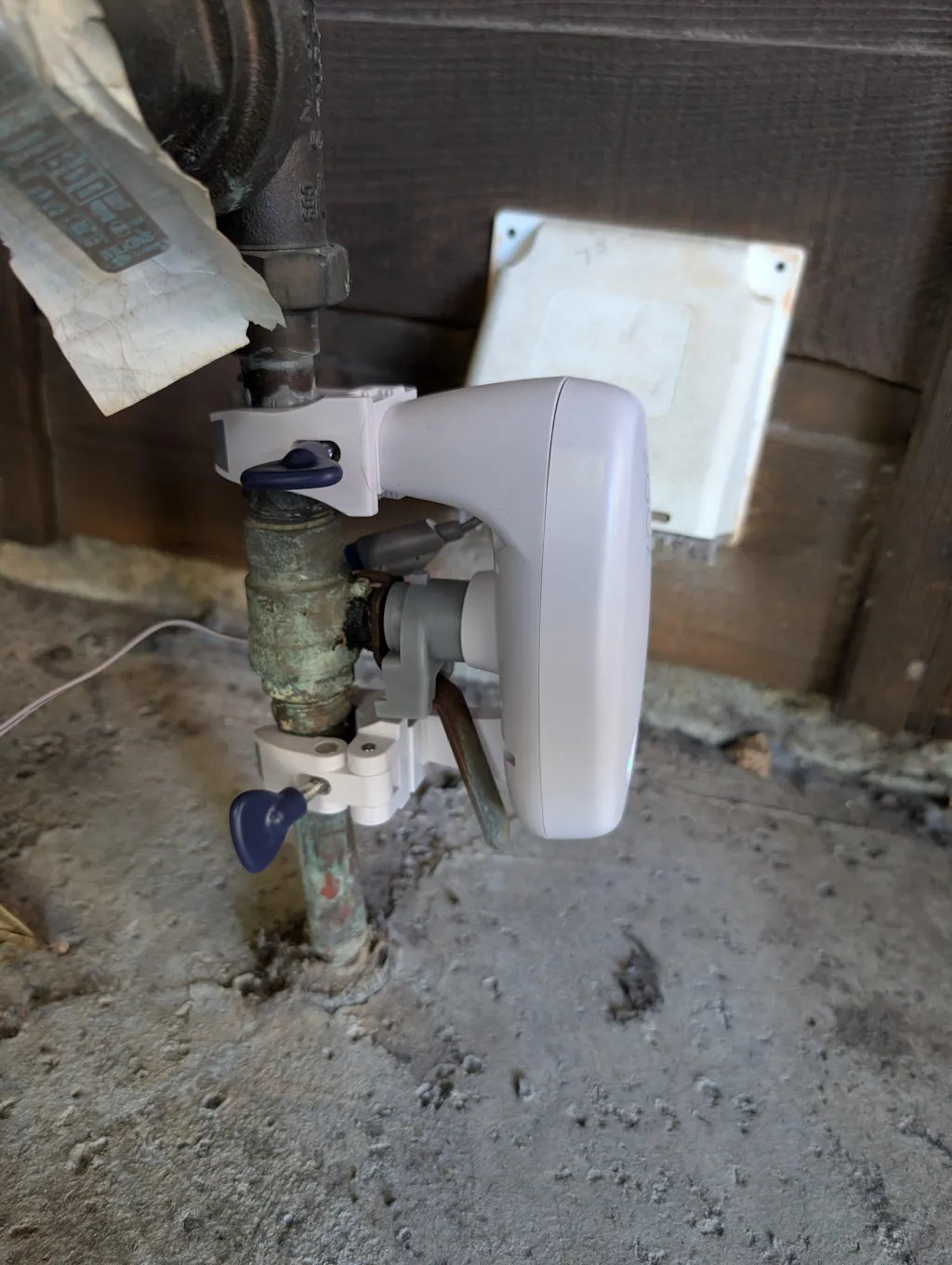

Installation

 NOTE: Don't test or turn the valve until it's fully installed and calibrated. Complete all of the installation steps before you begin testing.

You can install the valve actuator in a few minutes with no tools at all! Watch the video below for step-by-step instructions:

If installing the Titan actuator outdoors, please lock the Z-Wave button to prevent water damage to the device. Hold the Z-Wave button until 3 beeps sound, the tap the Z-Wave button 3 times. You can unlock the Z-Wave button by performing the same steps if you need to use it for programming purposes in the future.
