Zooz 700 Series Z-Wave Plus S2 On / Off Toggle Switch ZEN73

NEW 700 SERIES!



PRODUCT HIGHLIGHTS

  •   Beta release:   you may need to update the firmware in the near future to get full functionality of your device; the device may not be fully compatible with your hub at the time of this release.
  • Add wireless on/off control to your lights with the classic toggle design (no dimming, get the dimmer here)
  • NEW 3-WAY & 4-WAY WIRING: Still no add-on and use it in larger set-ups for multi-point control. Wires like the ZEN26 model; always follow the diagram in the manual, do NOT wire like the older ZEN23/ZEN24 switches. Neutral required.
  • Use with high-quality LED or incandescent lighting only: do NOT connect to switched receptacles, fans, or tube lights (NOTE: FEIT bulbs are not recommended)
  • NEW 700 SERIES: Minimized switch depth to fit shallow and crowded boxes (just 1.1" deep); optimal antennae positioning for better signal
  • NEW 700 chip: SmartStart for instant pairing, S2 security, greater network coverage for a truly stable connection!
  • Scene Control if your system supports multi-tap triggers*

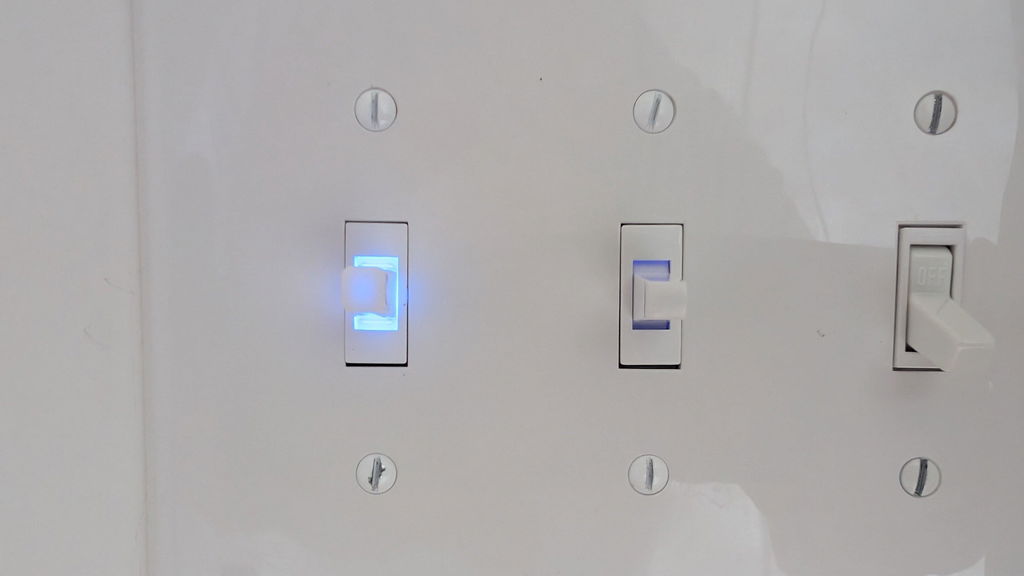

  • Smart LED indicator with 4 colors to help you through the inclusion, exclusion, and reset process (LED indicator for diagnostic purposes only, not visible with the wall plate on)
  • Range test mode: troubleshoot your network straight from the switch
  • Instant on/off status reported to the hub
  • S2 security for hacker-proof smart home
  • Update firmware via OTA anytime in the future to keep your device up to date with latest technology*
  • Restores status after power failure
  • Use a standard-size wall plate for single gang installations (wall plate not included)
  • 1-year warranty and lifetime tech support

    NOTE: Z-Wave gateway controller required - sold separately.*Your hub needs to support advanced settings for this feature to be available.

    INSTALLATION

    Please follow the manual guidelines and diagrams when installing your Zooz S2 switches. It's recommended that a licensed electrician performs the installation.

    Check for neutral wires BEFORE purchasing. One white wire from a 14-3 romex is NOT a neutral. Ask us if you're not sure about the wiring, we'll help quickly!

    Zooz ZEN26 wiring diagram

    How to include the 700 Series On / Off switch to your smart home hub?

    1. Make sure the switch is installed within range of your Z-Wave network
    2. Put your Z-Wave hub in inclusion/pairing mode
    3. Tap the toggle up 3 times quickly to finalize the inclusion process
    4. A new on/off switch will appear on your controller's device list

     NOTE:  Follow an appropriate diagram from the manual to wire the switch in a 3-way or 4-way setting with a regular electrical switch if you are looking to control one light with 2 or 3 switches. If you can't match your wiring with any of the diagrams, let us know and we'll walk you through the wiring process.

    WORKS WITH

    NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product.

    SPECIFICATIONS

    • Z-Wave Frequency: 908.42 MHz (US)
    • Power: 120 VAC, 60 Hz
    • Maximum Load: 8 A, 150 W LED/CFL, 600 W incandescent
    • Z-Wave Range: Up to 200 feet line of sight
    • Dimensions: 1.16" deep, 1.75" wide, 4.1" tall
    • Operating Temperature: 32-104° F (0-40° C)
    • Installation: Indoor use only

      RESOURCES

      Download the Manual for Zooz 700 Series Z-Wave Plus S2 On / Off Toggle Switch ZEN73 (PDF)
