NEW 700 SERIES!
- Control lights from the wall switch or wirelessly with Z-Wave
- On / off only for instant switching (get the dimmer here)
NEW in 700 series: smaller profile (just 1.1" deep) to fit easily in a crowded or shallow box; replaceable paddles (almond, brown, and black paddle kits available)
700 chip: more range, faster signal, SmartStart inclusion + S2 security
Direct 3-Way Solution: no add-on switch needed, wires just like the ZEN21 model (Neutral required, 4-Way wiring possible if direct connection to load and line are in the same box, check before buying)
- Works well in simple single pole installations

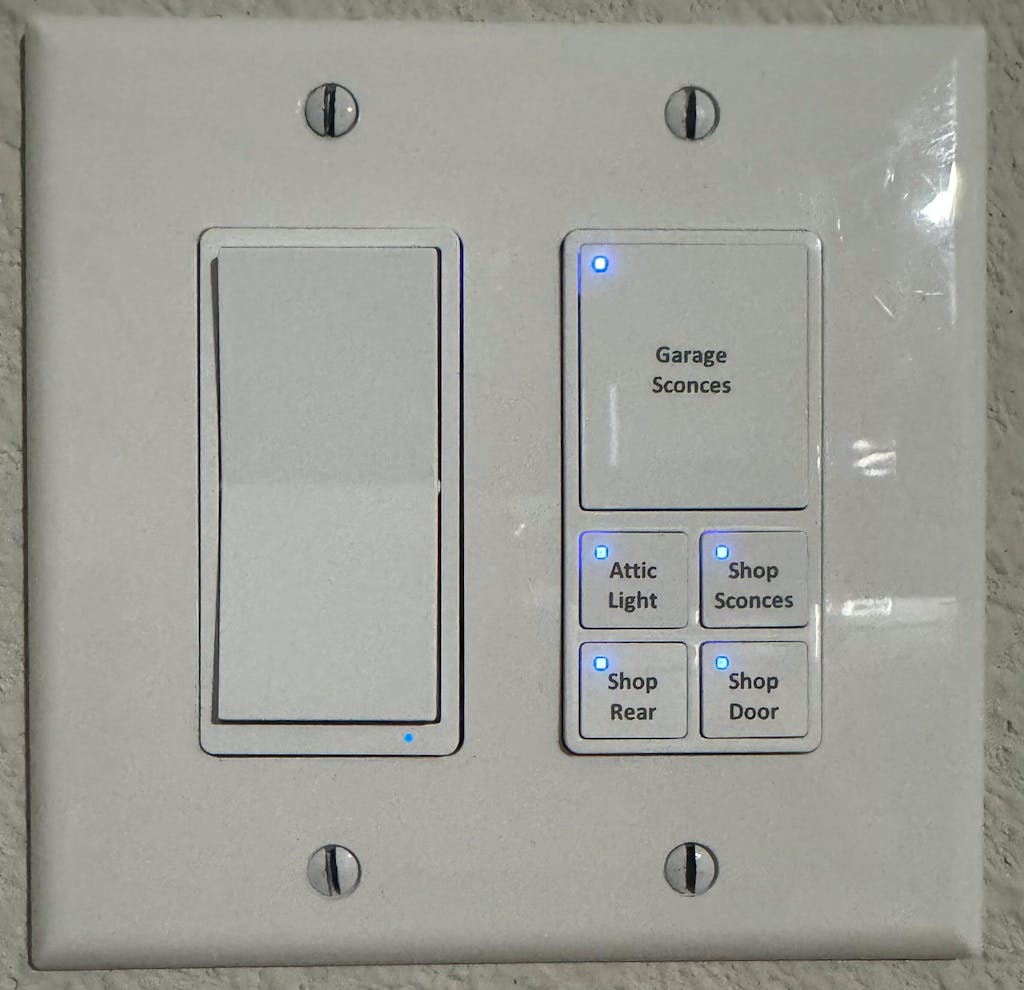

Adjustable LED indicator: choose the color and brightness that works for you!
Built-in range test tool: diagnose network issues straight from your switch
Scene control available on hubs that support multi-tap triggers*
Smart bulb mode: disable the relay for truly wireless control or use as a remote control / smart add-on switch
- Restores on/off status after power failure
- Compatible with LED, and incandescent bulbs (NOTE: FEIT bulbs are not recommended)
Don't connect to tube lights or fans over 3A / 5 years old
- Stronger repeater to boost your Z-Wave network
- Use a standard-size wall plate for single gang installations (wall plate not included)
- 1-year warranty
NOTE: Z-Wave gateway controller required - sold separately. *Your smart hub / controller needs to support advanced settings for you to take advantage of this feature.
Before installing, make sure the load does not exceed 960W for incandescent lights, 150W for CFL's and LED's, or 1800W (15A) for resistive load. Check your wiring first to confirm that you have all the following wires present in your gang box: load (most often black), line (most often black), neutral (most often white), and ground (most often green).
If you are not comfortable identifying the wiring and following the instructions, please hire a licensed electrician.
Here are some helpful wiring tips:
- Make sure the gang box you are about to install the switch has a neutral wire available - you will not be able to get the ZEN71 switch to work without a neutral wire.
- Unlike regular mechanical switches, Z-Wave switches require all of the wires to be connected exactly as indicated - line and load wires can never be swapped as it sometimes happens to the most experienced electricians.
How to include the 700 Series On / Off switch to your smart home network?
1. Bring your Z-Wave gateway hub or controller as close to the switch as possible
2. Put your Z-Wave controller in inclusion/pairing mode
3. Tap the upper paddle of the switch 3 times quickly to finalize the inclusion process
4. A new on/off switch should appear on your controller's device list
NOTE: Use a dedicated diagram from the manual to wire the switch in a 3-way setting with a regular electrical switch if you are looking to control one light with 2 or 3 switches.
SHOP COLOR PADDLES
NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product.
- Z-Wave Frequency: 908.42 MHz (US)
- Power: 120 VAC, 60 Hz
- Maximum Loads: 960W Incandescent, 150W LED and CFL bulbs, 1800W (15A) Resistive, 3A fan motors
- Z-Wave Range: Up to 200 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module
- Dimensions: 1.16" deep, 1.75" wide, 4.1" tall
- Operating Temperature: 32-104° F (0-40° C)
- Installation: Indoor use only
Download the Manual for Zooz Z-Wave Plus On / Off Switch ZEN71 (PDF)
More wiring diagrams for 3-way and 4-way set-ups
