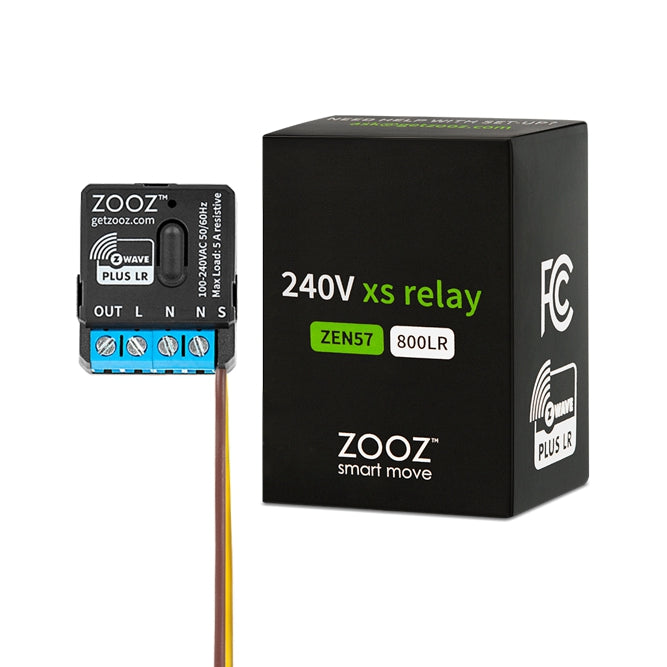

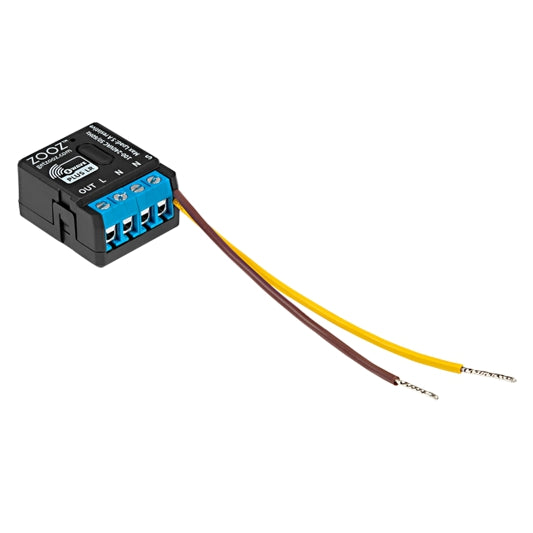

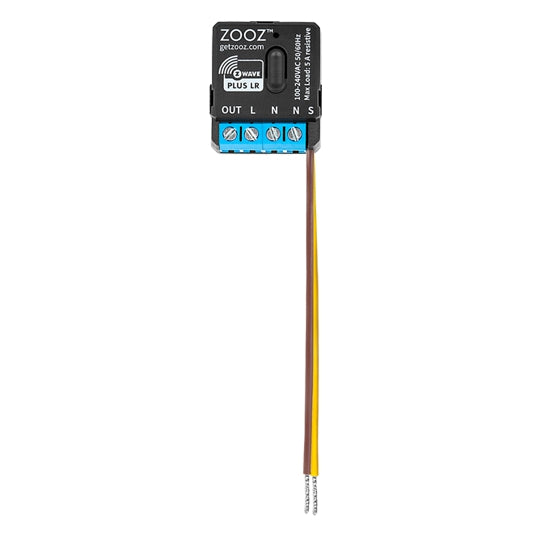

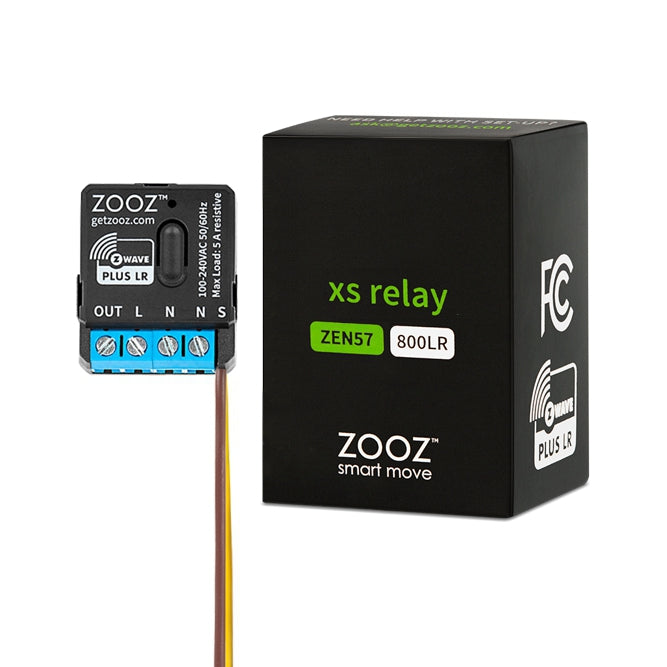

Zooz Z-Wave Long Range 240V XS Relay ZEN57 800LR

100-240 Volt Control

PRODUCT HIGHLIGHTS

• On/off Z-Wave control for 100-240VAC 50/60 Hz lights up to 5A (don't connect to fans or receptacles)

• Dry contact switch: connect and control from a wall switch (no Voltage, see diagram), you need load and line in the same box for 3-way installations

• 800 series Z-Wave chip: fast, secure, and rock solid wireless connectivity

• Z-Wave Long Range (ZWLR): if your hub implements ZWLR, you'll benefit from the ultra reliable direct device-to-hub communication which extends the range like never before and eliminates network lags
• Super compact design: fits the most crowded installations, perfect for stacked switches or shallow boxes
• SmartStart and S2 authenticated security for a truly protected smart home
• Installs behind the existing wall switch (no Voltage!) or at the light fixture (if neutral is not available in the switch box)
• Great if you'd like to leave your favorite wall switch style or color but add Z-Wave to it
• Smart bulb mode: disable manual and/or Z-Wave control to control your smart bulbs via Z-Wave only without cutting power to them
• Scene control: choose from 7 multi-tap triggers to expand the functionality of the connected switch (available on hubs that support multi-tap triggers*)

• Compatible with quality LED bulbs (don't connect to ballast tube lights, switched receptacles, or fans; NOTE: FEIT bulbs are not recommended)

• Multicolor LED indicator for easier troubleshooting
• Built-in signal repeater: helps keep your network quick and reliable in a traditional Z-Wave mesh
• 5-year extended warranty (if registered within 30 days) and lifetime tech support


NOTE: Z-Wave gateway controller required - sold separately.

PRODUCT CONDITION

We may have this product available in open box, refurbished, or used condition - just check the variant buttons under the product price for availability. All of our recycled inventory has been tested for both manual and Z-Wave control and is fully functional at the time of shipment. Here is what you can expect when ordering your device:

• NEW: brand new product, as delivered by the factory
• OPEN BOX: like new item in excellent condition, it may come in partially damaged or not original packaging; all accessories included; hardware and firmware version may be different than the brand new device description.
• REFURBISHED: good condition, may show slight signs of wear, may not include all accessories (like product manual); hardware and firmware version may be different than the brand new device description.
• USED (FINAL SALE): used condition, may show signs of wear, may not include accessories (like product manual) or parts of the packaging; may show signs of wear like scratches or shorter pigtail wires; FINAL SALE: not eligible for return, replacement, or warranty service; hardware and firmware version may be different than the brand new device description

SPECIFICATIONS

• Z-Wave Region: US/CA/MX, EU/UK (no Z-Wave Long Range)
• Power: 120-240 VAC, 50/60 Hz
• Maximum Loads:
  • 120V: 5A resistive, 500W incandescent, 150W LED bulbs
  •  240V: 5A resistive, 1000W incandescent, 300W LED bulbs
• Z-Wave Range: Up to 300 feet line of sight (up to 1300 feet with Z-Wave Long Range)

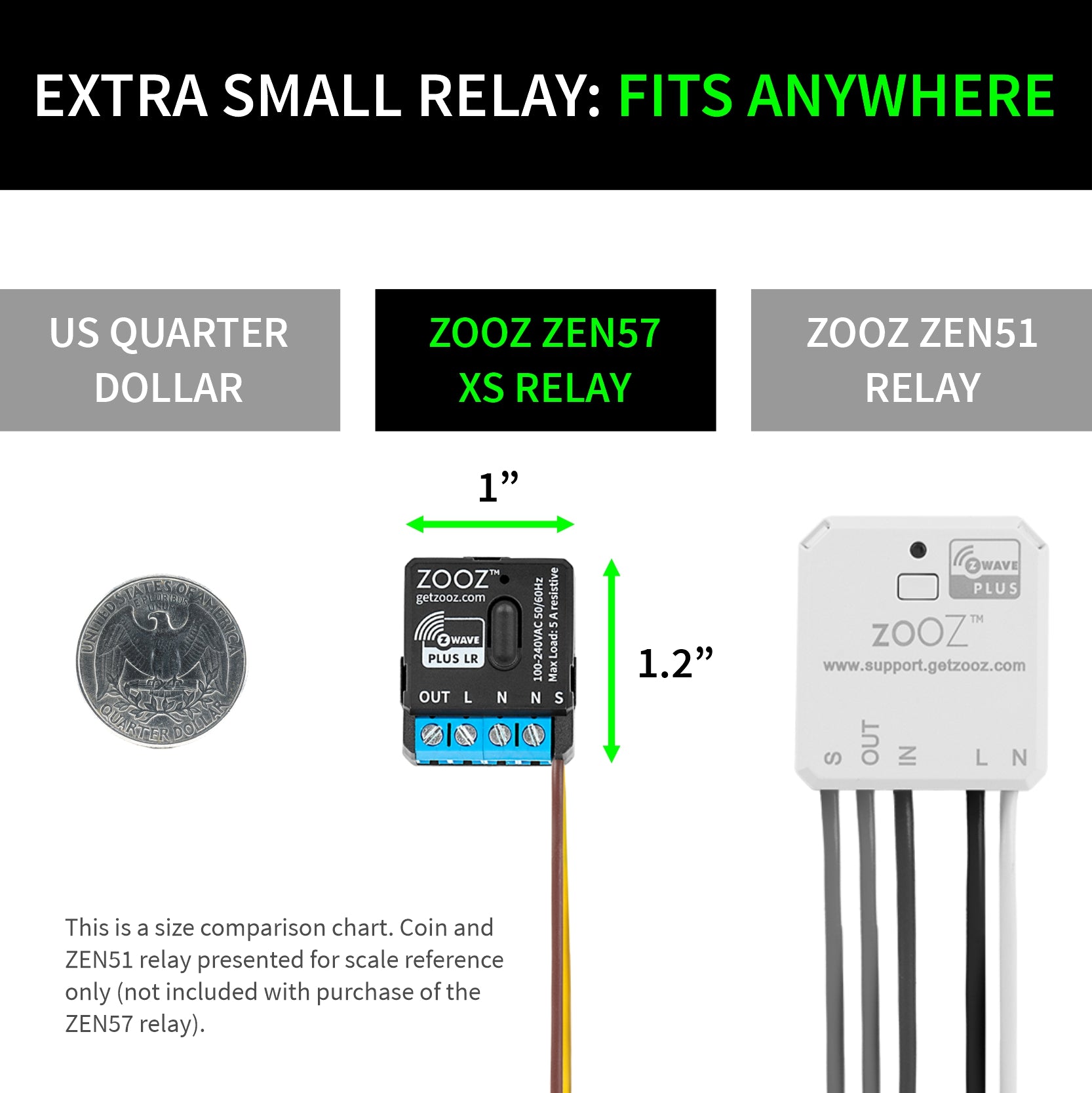

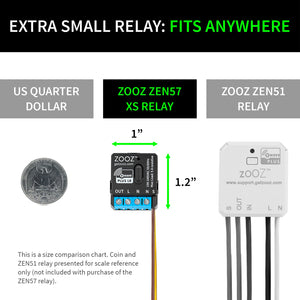

• Dimensions: 1.2” x 1” x 0.6”
• Operating Temperature: 32-104° F (0-40° C)

• Installation: Indoor use only

RESOURCES

Download the Manual for Zooz Z-Wave Long Range 240V XS Relay ZEN57 800LR (PDF)

Advanced Settings

Support Portal

WORKS WITH

• Z-Box Hub (recommended for Zooz products)
• Ezlo Plus
• Ezlo Secure
• Home Assistant (Z-Wave JS)
• HomeSeer (with Z-Wave Plus plug-in)

• Hubitat (change device type to Generic Z-Wave Plus Switch manually)
• SmartThings (install the custom lua driver for advanced functionality)

NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product.

INSTALLATION

Before installing, make sure the load does not exceed the Wattage provided in the specs. Check your wiring first to confirm that you have all the following wires present in your gang box: load (most often black), line (most often black), neutral (most often white), and ground (most often green).

If you are not comfortable identifying the wiring and following the instructions, please hire a licensed electrician.

Here are some helpful wiring tips:

• Make sure the gang box you are about to install the switch has a neutral wire available - you will not be able to get the ZEN57 relay to work without a neutral wire. If neutral is not available, you'll need to install the ZEN57 at the light fixture.
• Unlike regular mechanical switches, Z-Wave switches and relays require all of the wires to be connected exactly as indicated - line and load (OUT) wires can never be swapped as it sometimes happens to the most experienced electricians.

How to include the 240V XS Relay to your smart home network?

How to add the 240V XS Relay to the Z-Box Hub

How to add the 240V XS Relay to SmartThings

How to add the 240V XS Relay to Home Assistant

How to add the 240V XS Relay to Hubitat

How to add the 240V XS Relay to HomeSeer

SmartStart Inclusion:

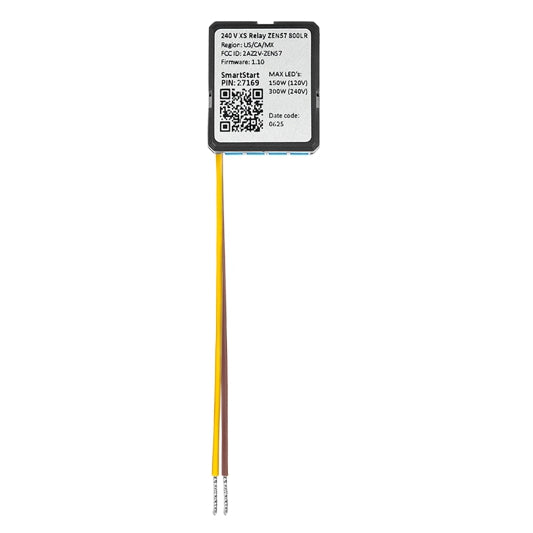

Open your hub's app and initiate pairing as usual. Scan the SmartStart QR code on the ZEN57 relay and power it up - it will include automatically. You don't need to click the Z-Wave button unless you're using SmartThings in which case, you may need to activate the relay by tapping the Z-Wave button 3 times quickly.

Manual Inclusion:

1. Bring your Z-Wave hub or controller as close to the relay as possible
2. Put your Z-Wave controller in inclusion/pairing mode
3. Click the Z-Wave button on the relay 3 times quickly to finalize the inclusion proces
4. A new on/off switch should appear on your controller's device list
