Zooz Z-Wave Plus 700 Series Remote Switch ZEN34 (Battery Powered)

Truly Wireless!



PRODUCT HIGHLIGHTS

  • BETA RELEASE: May not be fully integrated with the hubs from the Works With section for another few weeks; you may need to update the firmware.
  • Control Z-Wave devices or activate scenes with the multi-tap feature
  • Classic white paddle / rocker switch design for consistent look
  • Wire-free: the perfect add-on switch to put in an existing switch box or install on any flat surface
  • Scene Control (select hubs only): trigger up to 8 scenes or control up to 8 devices with multi-tap control.*
  • Smart bulb control: use scene control or direct association (for Z-Wave bulbs only) to turn your smart bulbs on and off through wireless signal instead of cutting power to them

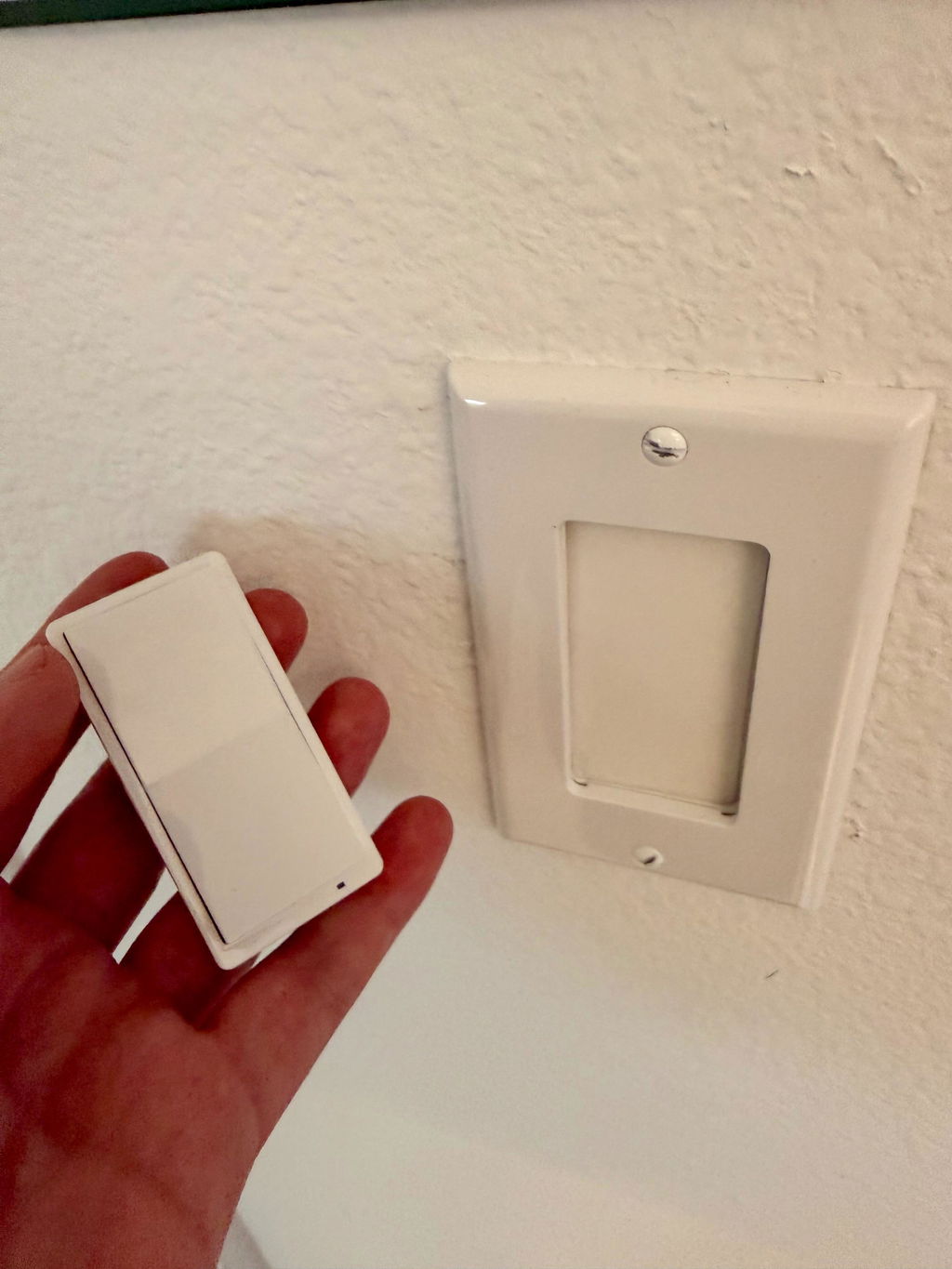

  • Magnetic base: take the switch out whenever you need to use it like a traditional remote control and put it back on the base for easy access next time
  • New 700 Z-Wave chip: more range and faster speed than ever
  • Adjustable LED indicator: choose from 4 colors and 3 brightness levels
  • Quick Installation: fix it to our switch box using the included screws or simply stick it to the wall with the supplied adhesive tape
  • White (no other color available)
  • S2 security with SmartStart for the safest and most convenient way to add and manage your Z-Wave devices
  • OTA firmware updates for a future-proof device
  • Included accessories: mounting screws, adhesive tape, wall plate and switch box screws, triangle tool to open the remote, magnetic base, standard single-gang wall plate (white)
  • 1-year warranty and lifetime tech support

    NOTE: Z-Wave gateway controller required - sold separately. *Your hub needs to support advanced parameter input to display these features.

    INSTALLATION

    No wiring requirements or diagrams for this one! Simply open the remote with the supplied triangle tool and remove the pull-tabs from the battery slots to power the device up. Add the device to your hub by following the instructions below and mount the base in a standard switch box or on any flat surface using the supplied screw or adhesive tape. Complete the installation by fixing the wall plate to the magnetic base of the Remote Switch.

    How to include the Remote Switch to your smart home hub?

    1. Make sure the device is within range of your Z-Wave network
    2. Put your Z-Wave hub in inclusion/pairing mode
    3. Tap the upper paddle of the Remote Switch 6 times quickly to finalize the inclusion process (or scan the QR code / enter the 4-digit DSK number printed on the back of the remote if using the new SmartStart method)
    4. A new remote control / button controller device will appear on your hub's device list

    WORKS WITH

    NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product.

    SPECIFICATIONS

    • Z-Wave Frequency: 908.42 MHz (US)
    • Power: 2 x CR2032 batteries
    • Z-Wave Range: Up to 250 feet line of sight
    • Operating Temperature: 32-104° F (0-40° C)
    • Installation: Indoor use only

      RESOURCES

      Download the Manual for the Zooz 700 Series Remote Switch ZEN34 (PDF)
