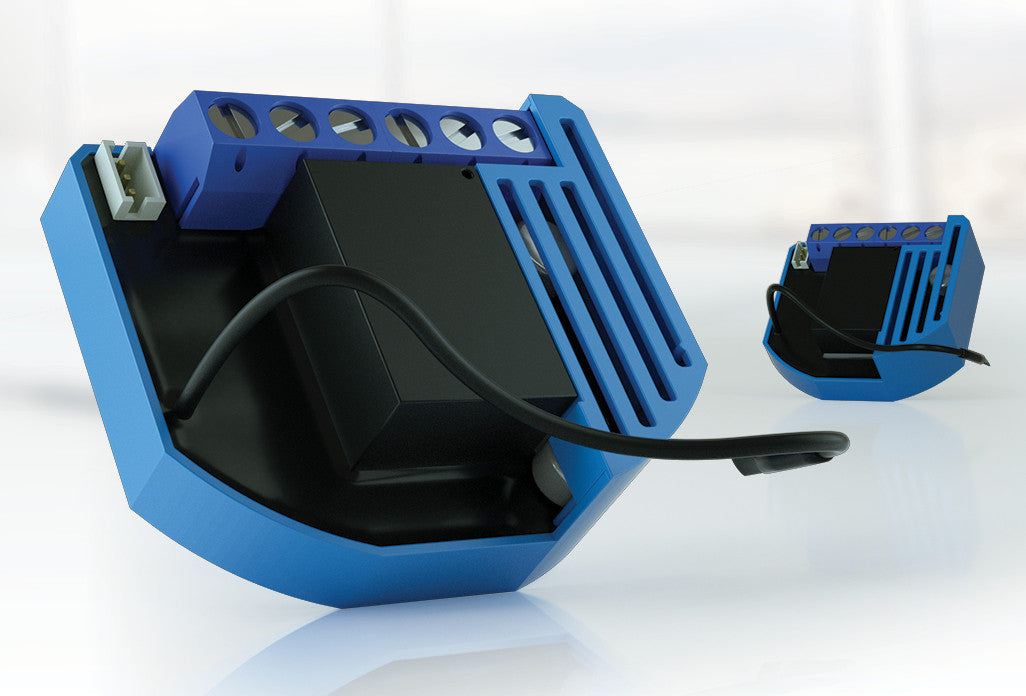

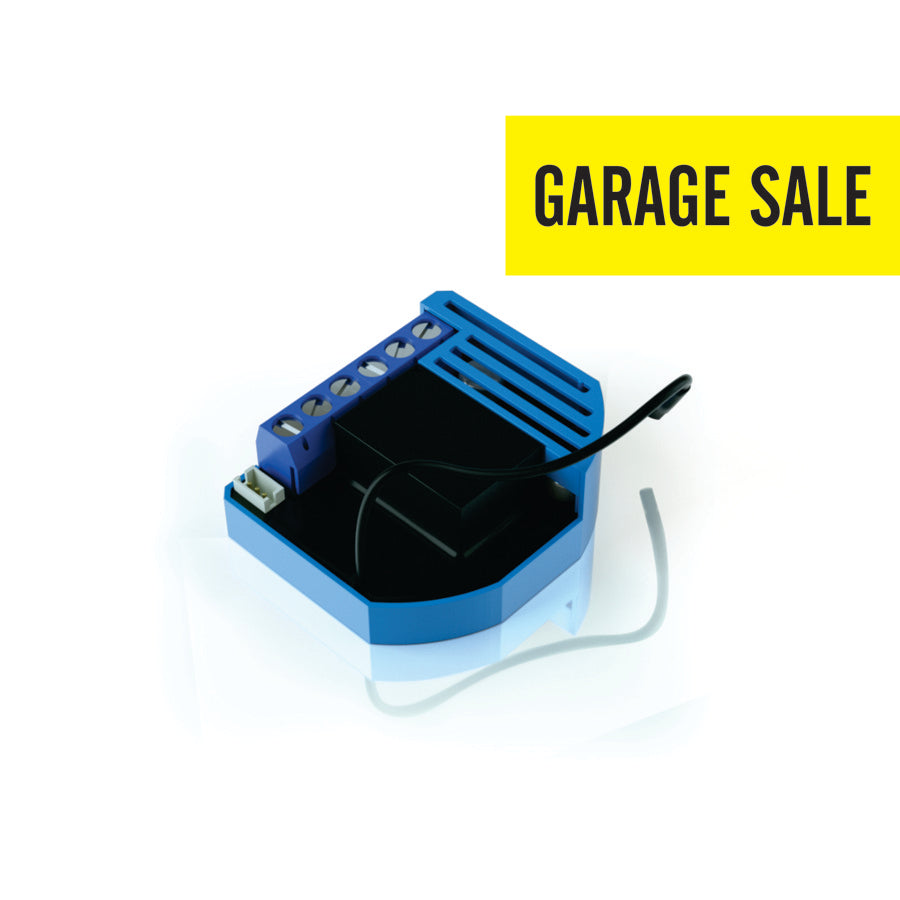

Qubino Z-Wave Plus Universal Relay Module with Dry Contact Switch ZMNHND3

POWERFUL AUTOMATION

PRODUCT HIGHLIGHTS

    • Dry contact switch with versatile applications

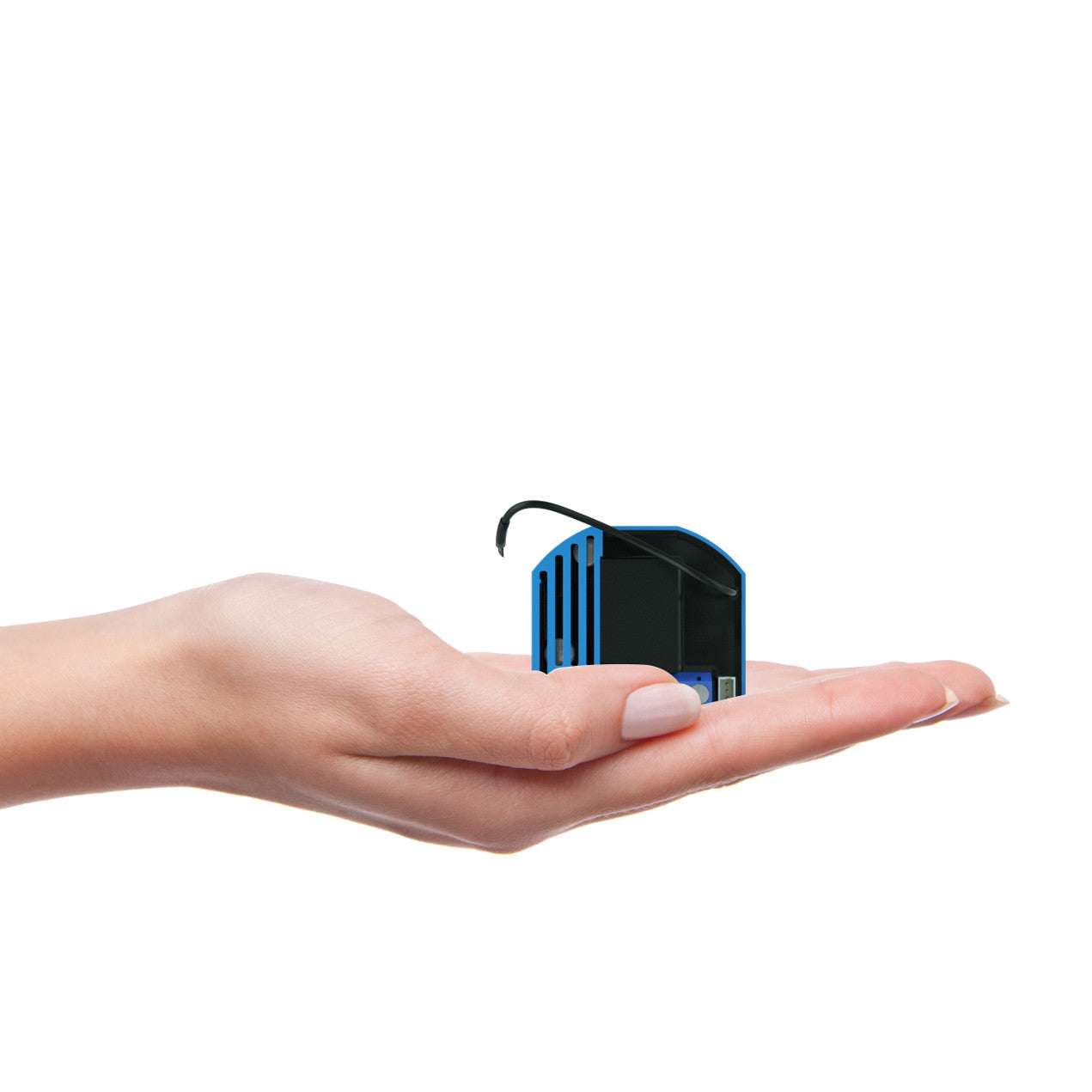

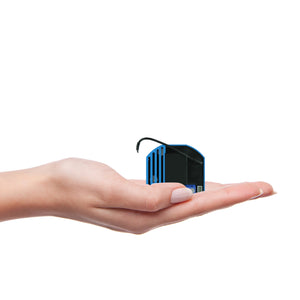

    • The smallest module on the market will fit behind any wall switch
    • Perfect for automating your garage door, sprinklers, or gas fireplace!
    • Control all types of bulbs and small appliances
    • Enjoy auto-inclusion and add the module to your Z-Wave network within seconds
    • Works with toggle and push-button (momentary) switch types
    • Set the device to automatically turn on or off after a fixed period of time*
    • Restores on/off state after power failure
    • Made in Europe from high-quality components
    • 2-year warranty

NOTE: Z-Wave gateway controller required - sold separately. *Your controller needs to support advanced configuration and parameter input to display these features.

GET ACCESSORIES

Buy the 120V AC Power CordShop for the digital temperature probe for Qubino relays

HOW IT WORKS

The Qubino Flush 1D Relay is a dry contact switch that enables remote on/off control of lights and small appliances. With a voltage-free output contact, different power supply loads under 10A can be connected to the module.

When included with your Z-Wave gateway controller, you’ll be able to check the on/off status of connected devices, and remotely control them from the ease of your smart phone or computer. Create personalized lighting schedules — like turning off the lights in the baby’s room at the same time every evening — to save on utilities and enjoy a comfortable routine.

This 1D Relay may also be paired with other Z-Wave devices for advanced home automation scenarios: open the garage door as soon as you leave your house in the morning. This module also acts as a Z-Wave signal repeater to strengthen your network.

INSTALLATION

Note:
    • Follow the diagrams in your user manual exactly. If you are unfamiliar with electrical wiring, please contact a qualified and licensed electrician to install your 1D relay.
    • Do not exceed the recommended loads — failure to do so may result in injury and equipment damage.
    • Before installation, make sure electrical power is completely disconnected and the main fuse disabled.

If including the module to your Z-Wave network automatically, then be sure to set your Z-Wave gateway controller into inclusion mode BEFORE you connect the device to a power supply. Auto-inclusion will occur within 5 seconds of connection to the power supply.

If you miss the auto-inclusion window, add the module to your Z-Wave network manually. First, connect the device to a power supply. Put your controller in inclusion mode, then toggle the switch connected to the I1 terminal 3 times within 3 seconds. Once successfully included into your Z-Wave network, the module will appear on your controller’s device list.

WORKS WITH

NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product.

SPECIFICATIONS

    • Z-Wave Frequency: 908.42 MHz (US)
    • Power Supply: 110VAC (24VDC)
    • Maximum Load for 110VAC: 2300 W / 10A
    • Maximum Load for 24VDC: 240 W / 10A
    • Power Consumption: 0.4W
    • Operating Temperature: 14 - 104 F
    • Dimensions: 1.6" x 1.4" x 0.6"
    • Weight: 1 oz

RESOURCES

Download the Manual for Qubino Z-Wave Plus Flush 1D Relay Module ZMNHND3 (PDF)
